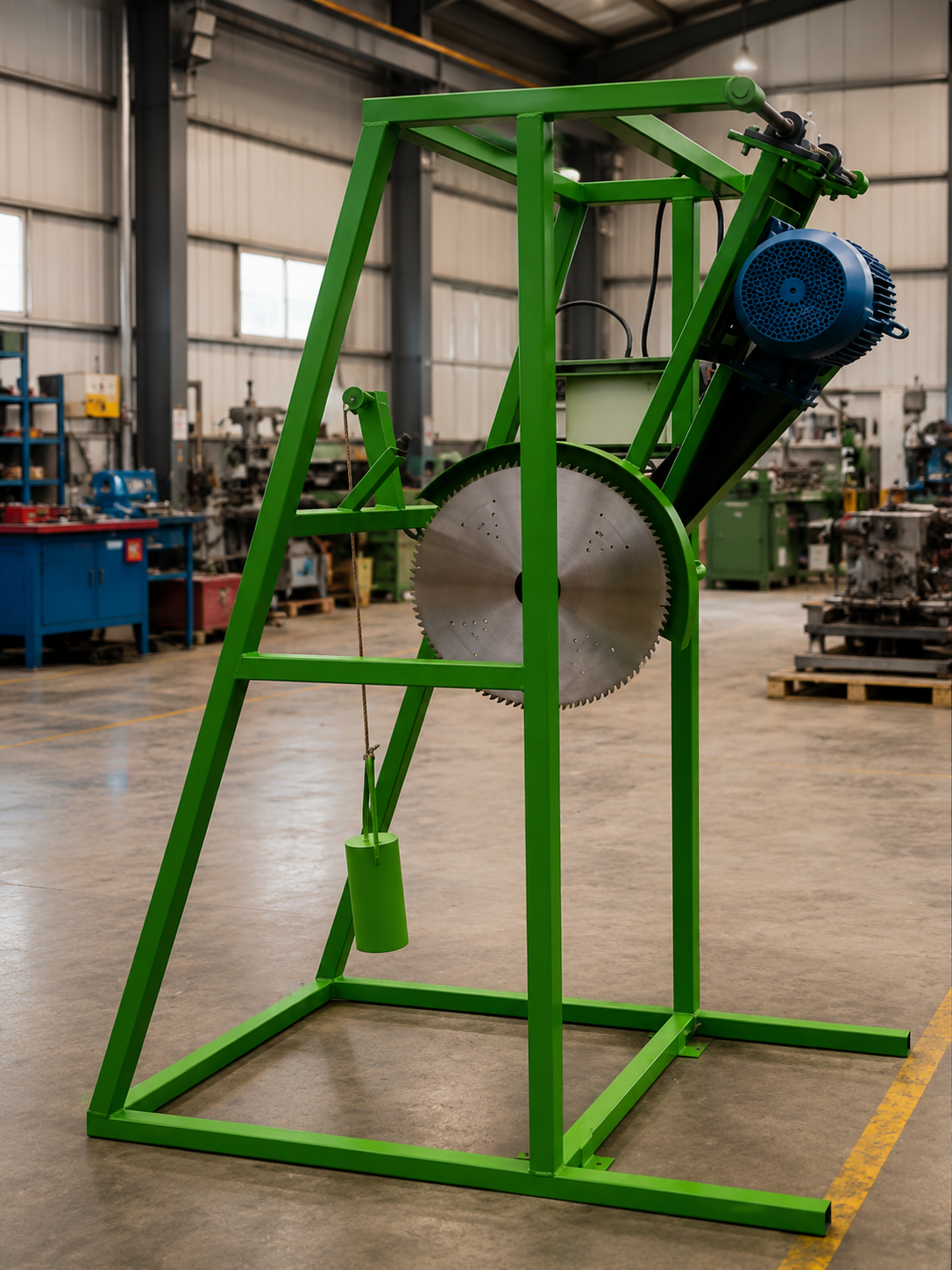

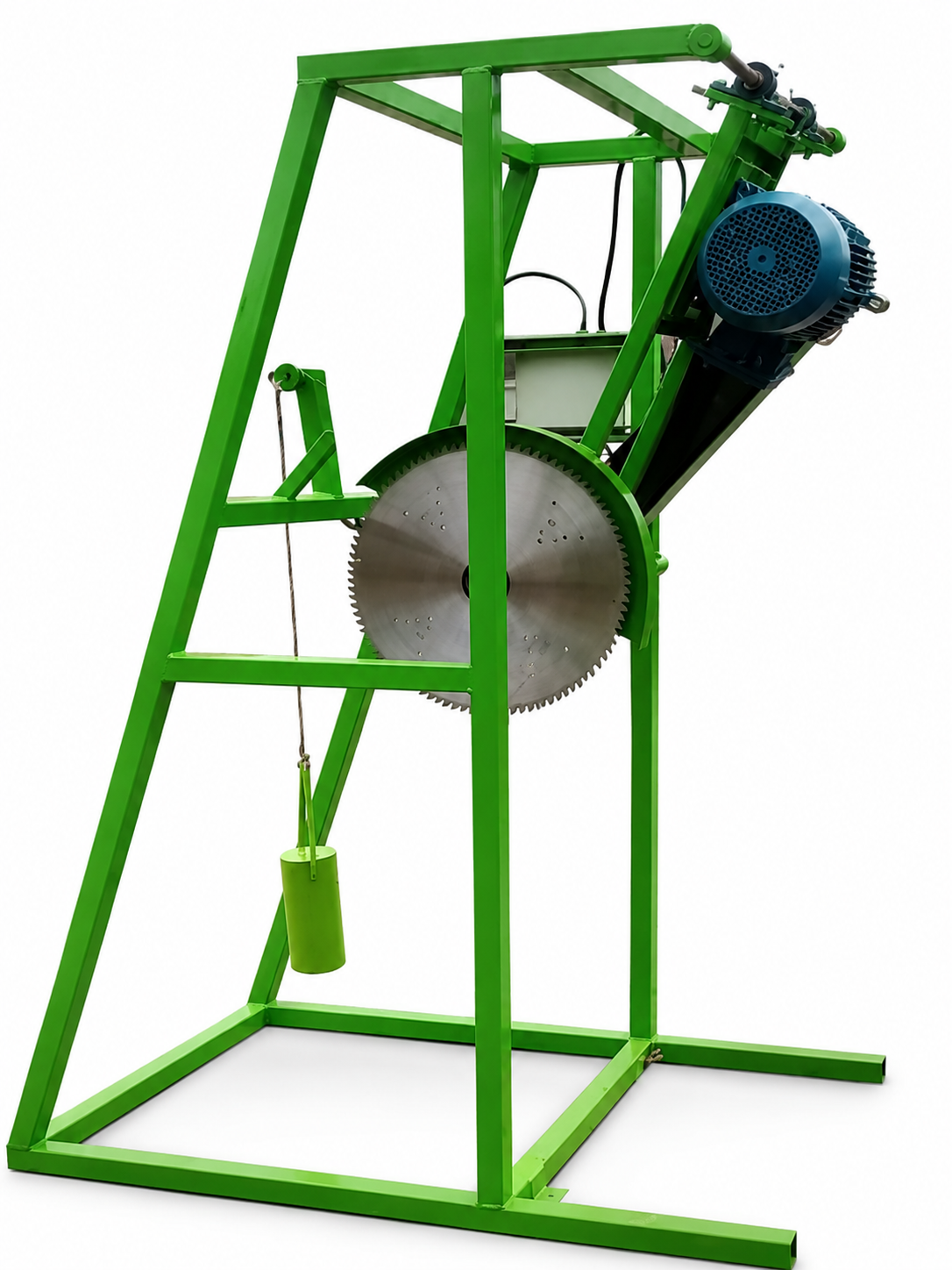

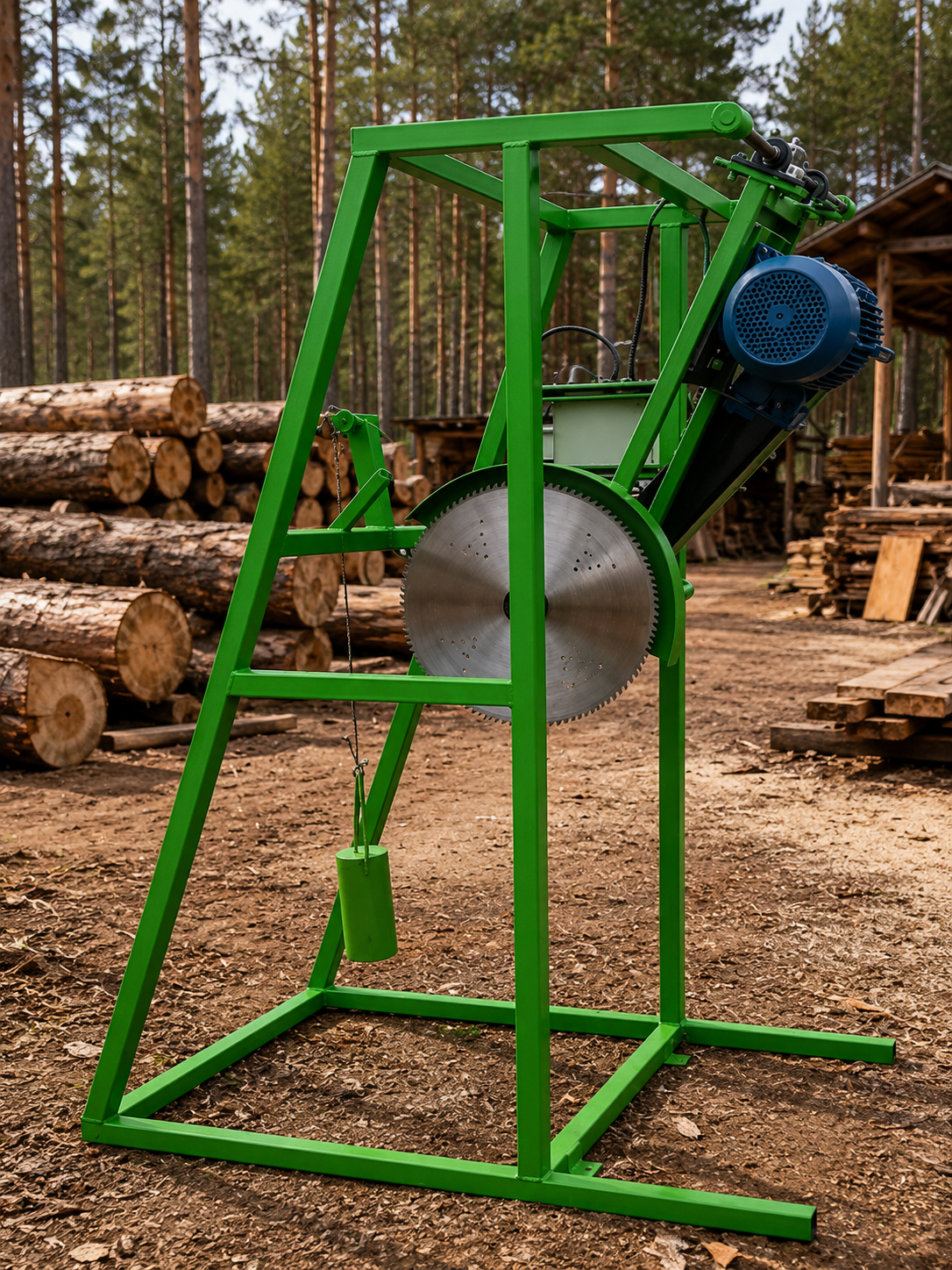

Mexican-Made PEN V Vertical Pendulum Saw
The Mexican-Made PEN V Vertical Pendulum Saw is designed for the practical and efficient crosscutting of wood pieces. It is ideal for sawmills, forestry workshops, wood-processing industries, and operations requiring speed, durability, and ease of use.
Manufactured in Mexico, this machine features a functional and durable structure designed for continuous operation. Its vertical configuration allows wood to be cut in a safe and controlled manner, making it easier to process pieces of different thicknesses.
It is equipped with a 10 HP electric motor operating at 1,750 RPM and requires a 220 V power supply, providing the power needed for consistent cutting. Its saw blade operates at 1,400 RPM, ensuring efficient performance throughout the process.
The working area accommodates wood pieces up to 6" thick, while production capacity depends on the thickness and type of wood being processed. Its 16"-diameter circular saw blade, with a nominal kerf of 3/16", provides firm and precise cuts.
Main Features
Specification | Details |
|---|---|
Machine | Vertical Pendulum Saw |
Manufacturing | Made in Mexico |
Model | PEN V |
Approximate Weight | 200 kg |
Height | 90" |
Length | 60" |
Width | 40" |
Power Supply | 220 V |
Electric Motor | 10 HP at 1,750 RPM |
Cutting Capacity | Wood Pieces up to 6" Thick |
Production Capacity | Depends on Wood Type and Thickness |
Blade Speed | 1,400 RPM |
Nominal Kerf | 3/16" |
Saw Blade | 16" Diameter |
Maintenance | Weekly and Monthly Preventive Maintenance |
Ideal For
Crosscutting wood pieces, material preparation, sawmills, forestry workshops, and wood-processing industries requiring a practical, powerful, and durable machine for continuous operation.
A compact, robust, and efficient machine manufactured to simplify wood cutting in industrial and forestry operations.
