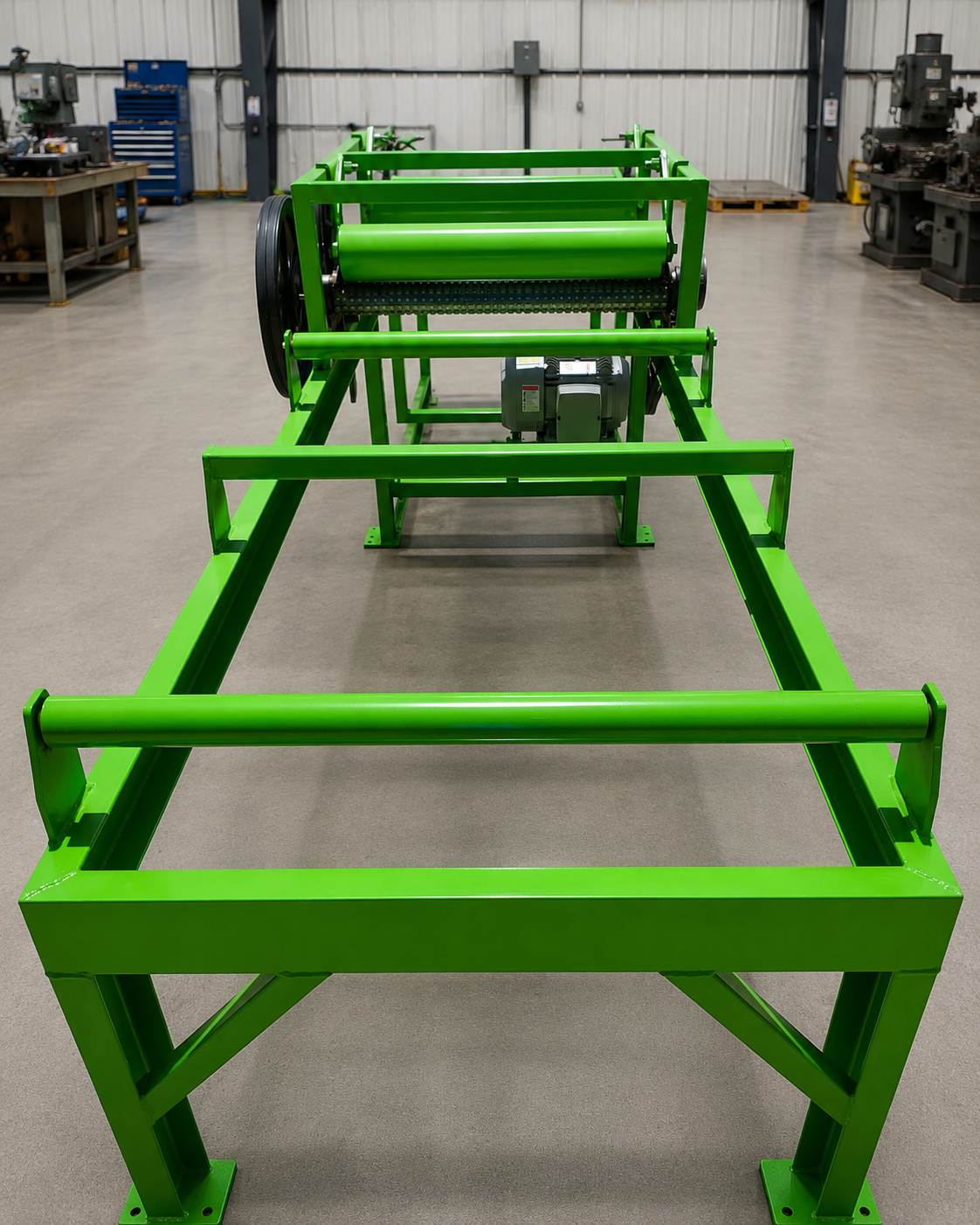

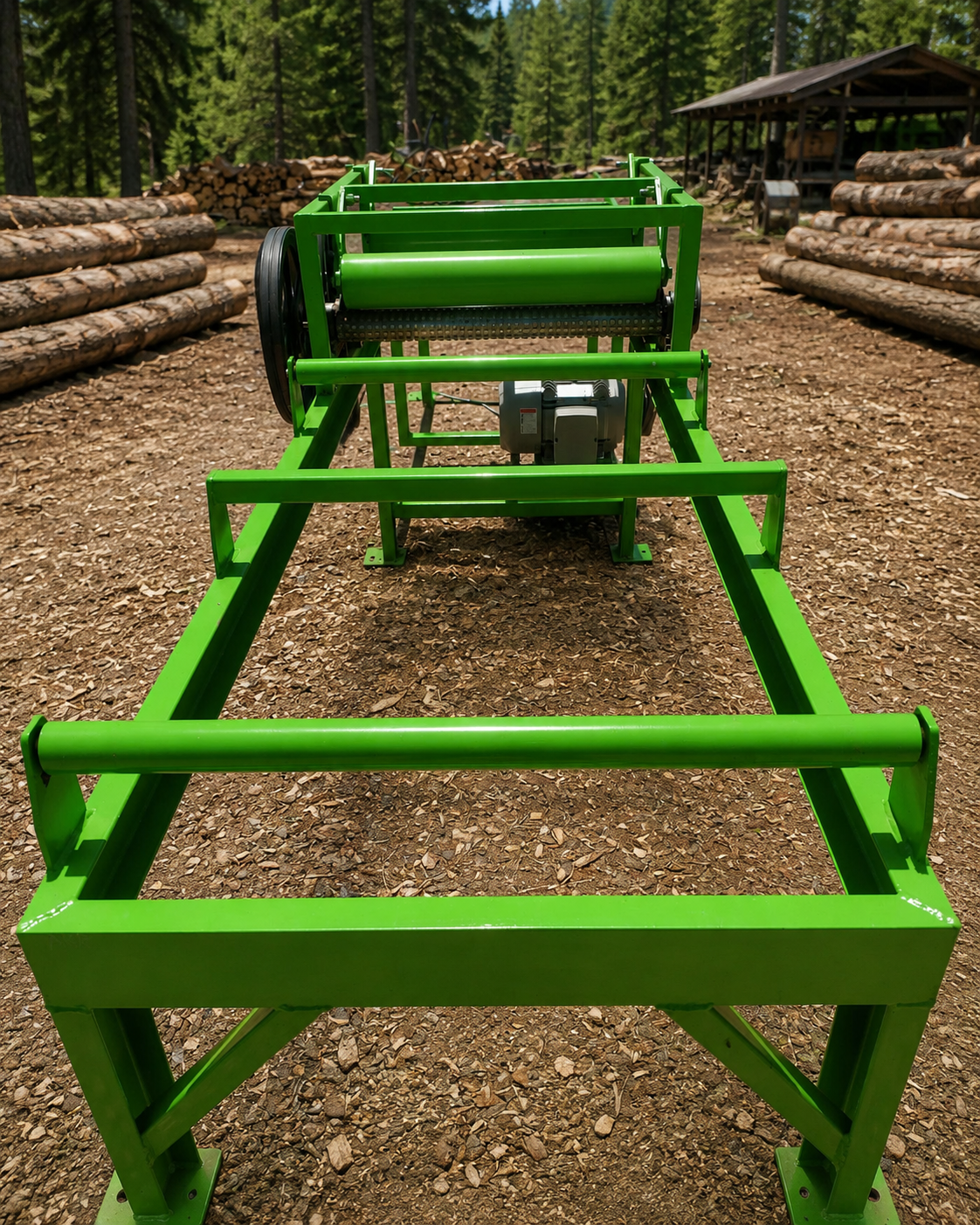

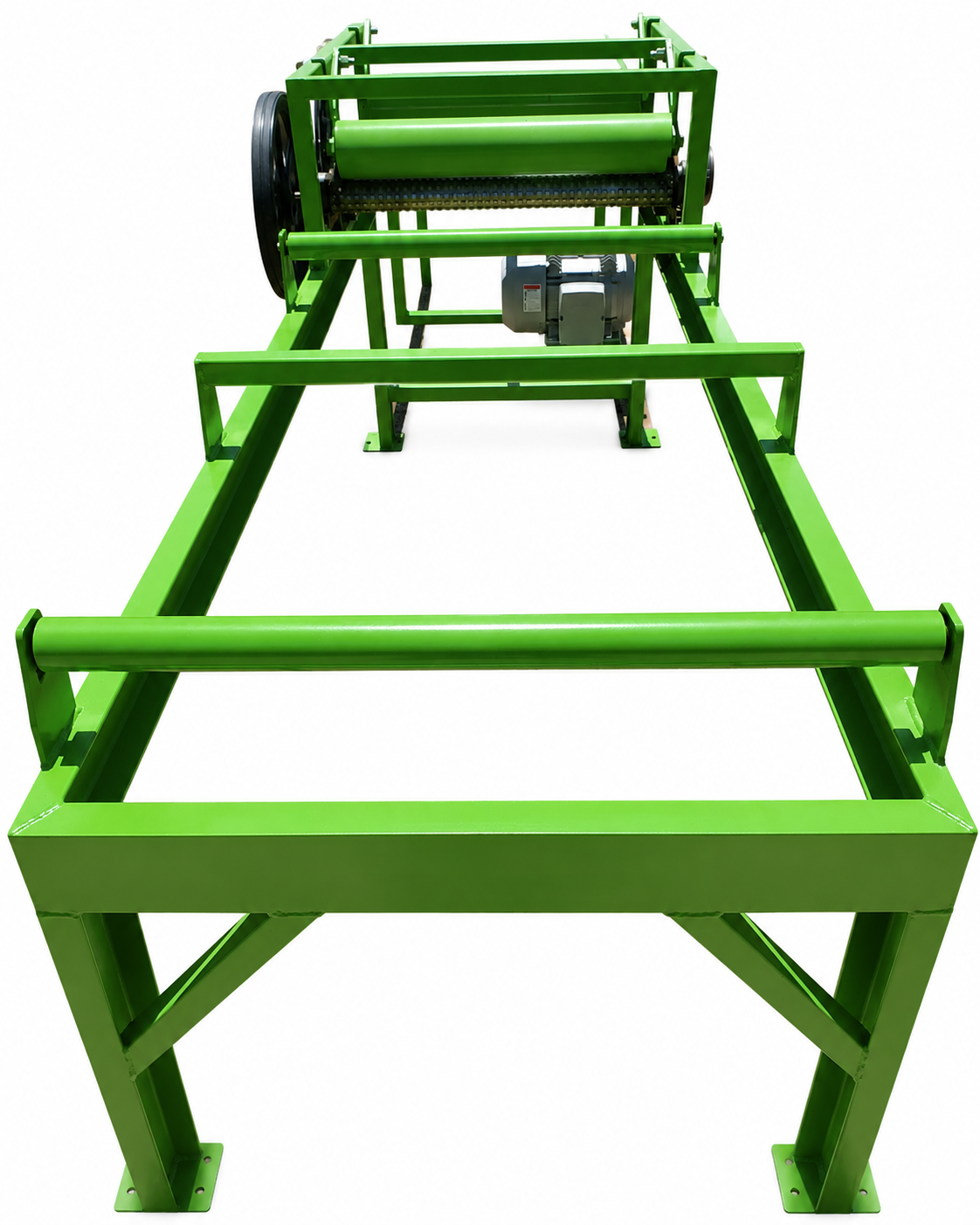

Mexican-Made Board Edger
The Mexican-Made Board Edger is designed for the side trimming and dimensioning of lumber. It is ideal for sawmills, forestry workshops, and wood-processing industries seeking to improve material recovery and produce boards with more uniform dimensions.
Manufactured in Mexico, this machine features a durable and functional structure designed for continuous operation. Its design allows lumber to move smoothly over rollers, while the pressure and feed systems help keep the material stable throughout the cutting process.
It is equipped with a 10 HP electric motor operating at 1,750 RPM and requires a 220 V power supply, providing the power needed for consistent cutting. Its working area includes material-support rollers, two pressure rollers, two feed rollers, and two cutting blades manually adjustable by lever, allowing the cutting width to be configured according to production requirements.
The CH DGE Board Edger provides an approximate operating capacity of up to 50 linear feet per minute, depending on the size and condition of the lumber. Its blades operate at 1,458 RPM, with a nominal kerf of 3/16", using 16-inch-diameter tungsten carbide-tipped circular saw blades.
Main Features
Specification | Details |
|---|---|
Machine | Board Edger |
Manufacturing | Made in Mexico |
Model | CH DGE |
Approximate Weight | 400 kg |
Height | 45" |
Length | 15 ft |
Width | 42" |
Power Supply | 220 V |
Electric Motor | 10 HP at 1,750 RPM |
Working Area | Material-Support Rollers, Pressure Rollers, Feed Rollers, and Cutting Blades |
Cutting System | Two Blades Manually Adjustable by Lever |
Production Capacity | Up to 50 Linear Feet per Minute, Depending on Lumber Size |
Blade Speed | 1,458 RPM |
Nominal Kerf | 3/16" |
Saw Blades | 16" Diameter with Tungsten Carbide-Tipped Teeth |
Maintenance | Weekly and Monthly Preventive Maintenance |
Ideal For
Board edging, width adjustment, lumber recovery, sawmills, forestry production lines, and processes requiring fast, uniform, and efficient side trimming.
A practical, durable, and reliable board edger manufactured to optimize lumber cutting and material recovery in industrial wood-processing operations.
