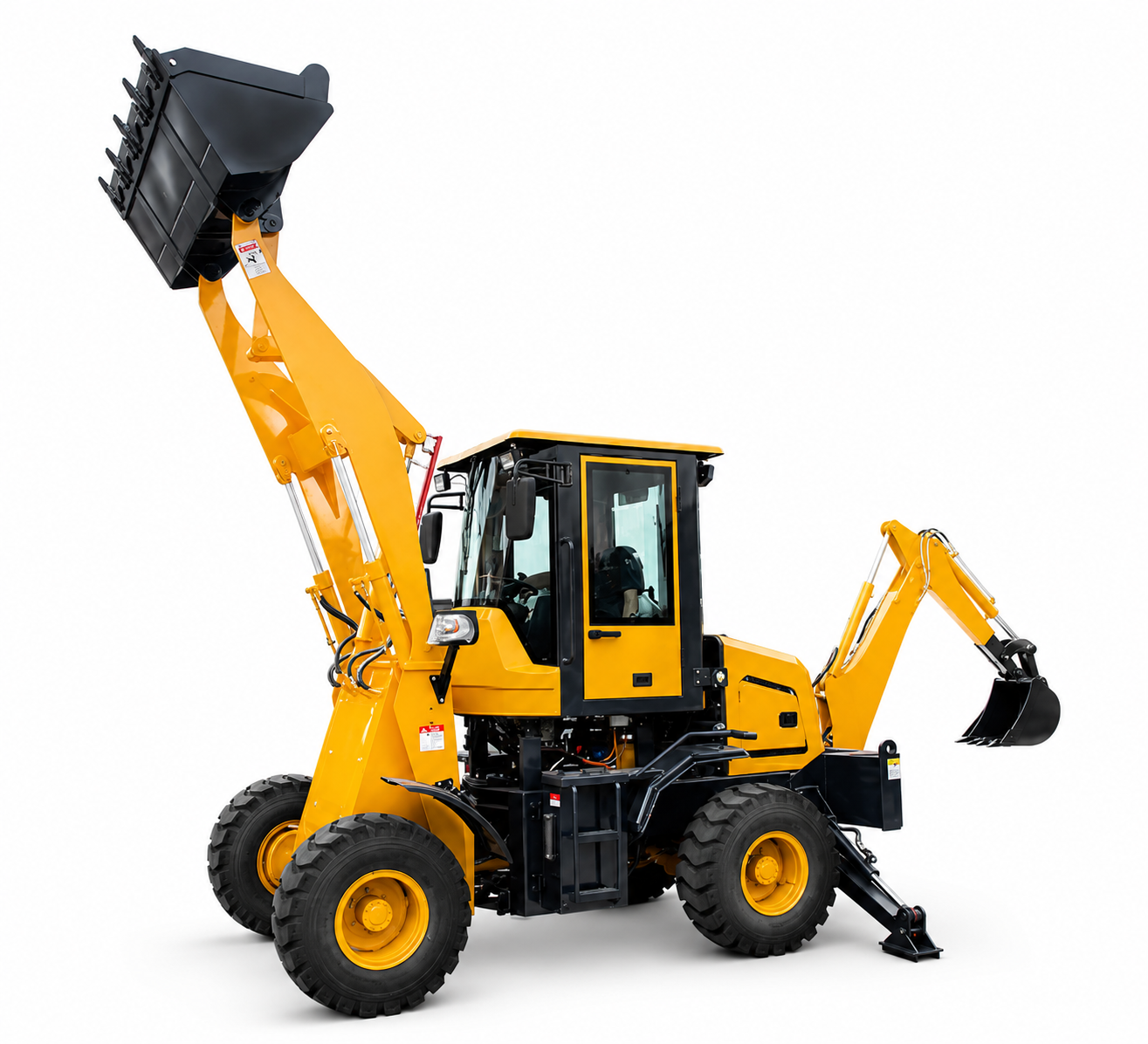

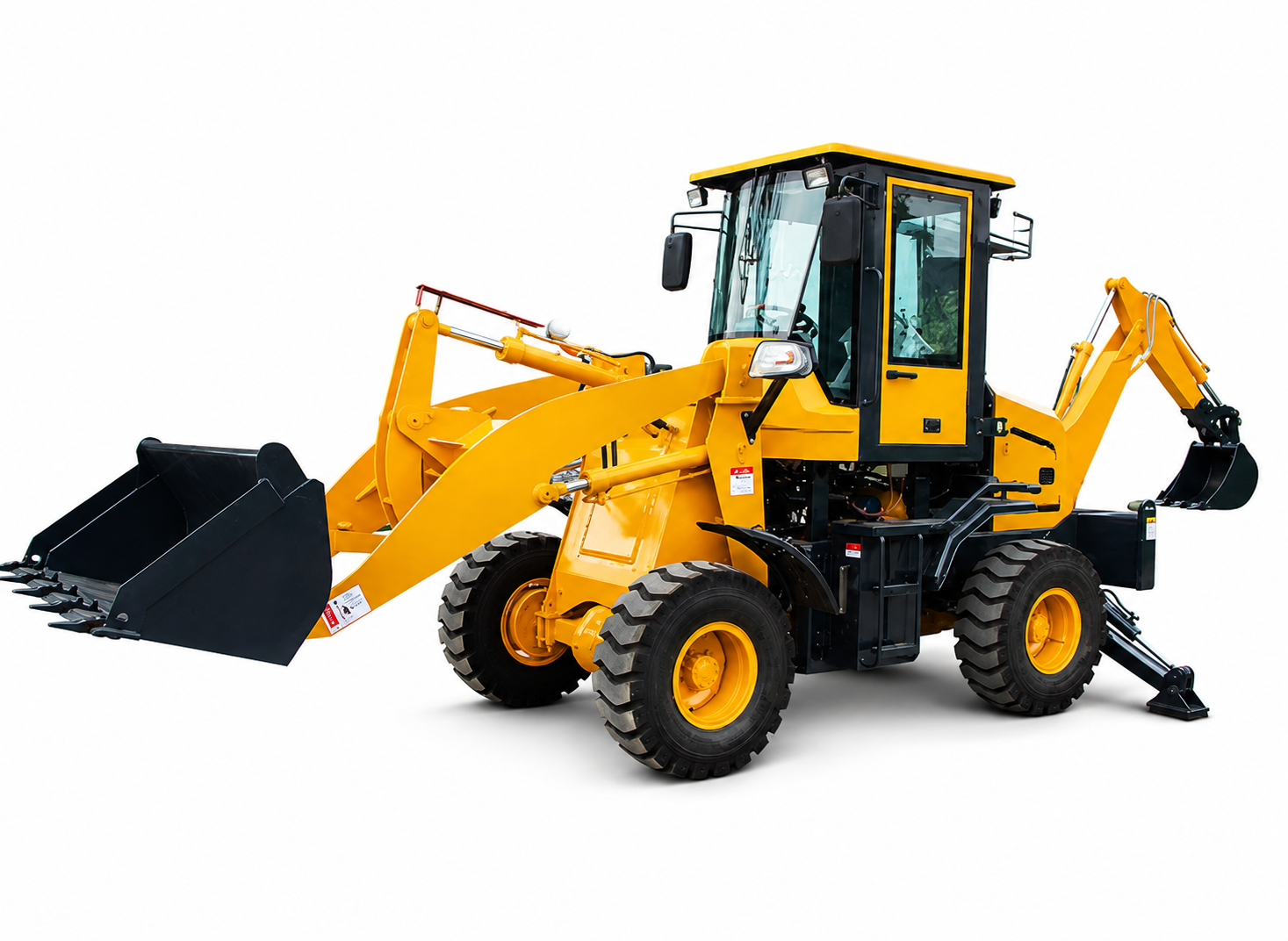

HW10-20 Backhoe Loader
The HW10-20 Backhoe Loader is a compact, versatile, and practical machine designed for loading, excavation, grading, and material-handling tasks in a wide range of work environments. Its design combines the functionality of a front loader with a rear excavator, providing greater versatility in a single machine.
It features a 0.5 m³ front loader bucket and a 0.1 m³ excavator bucket, making it an excellent choice for construction, agriculture, maintenance, civil works, landscaping, industrial yards, and earthmoving operations.
Its maximum loader unloading height of 2,800 mm makes it easier to load materials into trailers, containers, or elevated areas. It also provides a maximum digging radius of 2,600 mm, making it ideal for trenching, land clearing, light excavation, and precision work.
The HW10-20 provides safe, fast, and cost-effective operation. Its multifunctional design can accommodate different attachments according to specific operational requirements.
Main Features
Specification | Details |
|---|---|
Product | Compact Backhoe Loader |
Model | HW10-20 |
Loader Bucket Capacity | 0.5 m³ |
Excavator Bucket Capacity | 0.1 m³ |
Maximum Loader Unloading Height | 2,800 mm |
Maximum Loader Unloading Reach | 800 mm |
Maximum Digging Radius | 2,600 mm |
Approximate Dimensions | 5,500 × 1,750 × 2,650 mm |
Approximate Weight | 3,400 kg |
Rated Power | 36.8 kW |
Engine | Cummins, depending on configuration |
Primary Function | Loading, excavation, and material handling |
Design | Multifunctional and compatible with various attachments |
Ideal For
Construction, civil works, agriculture, maintenance, landscaping, earthmoving, trenching, material loading, industrial yards, ranches, and other applications requiring a compact, practical, and versatile machine.
A compact, efficient, and multifunctional machine designed to make loading and excavation tasks faster, safer, and more cost-effective.
