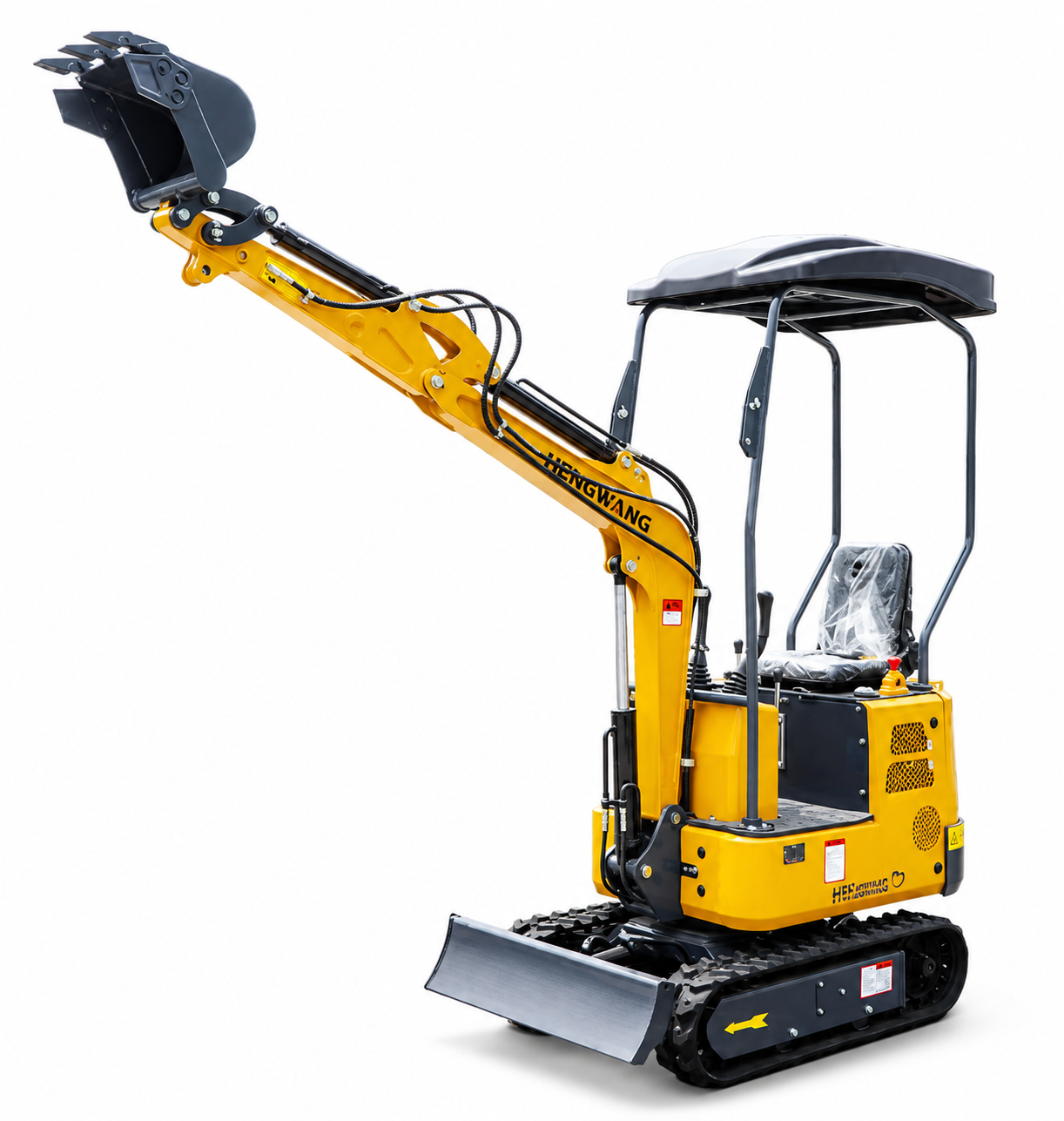

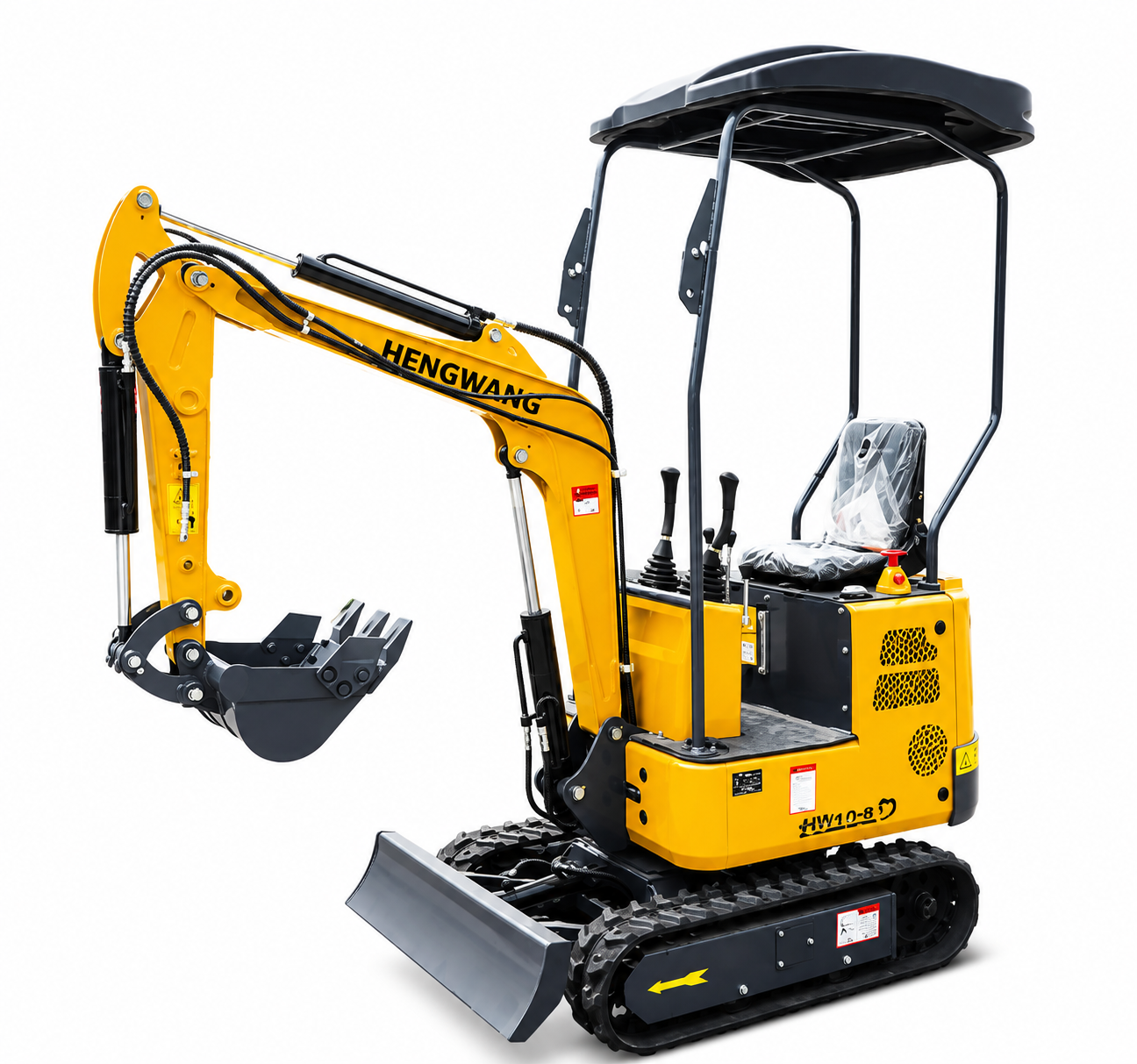

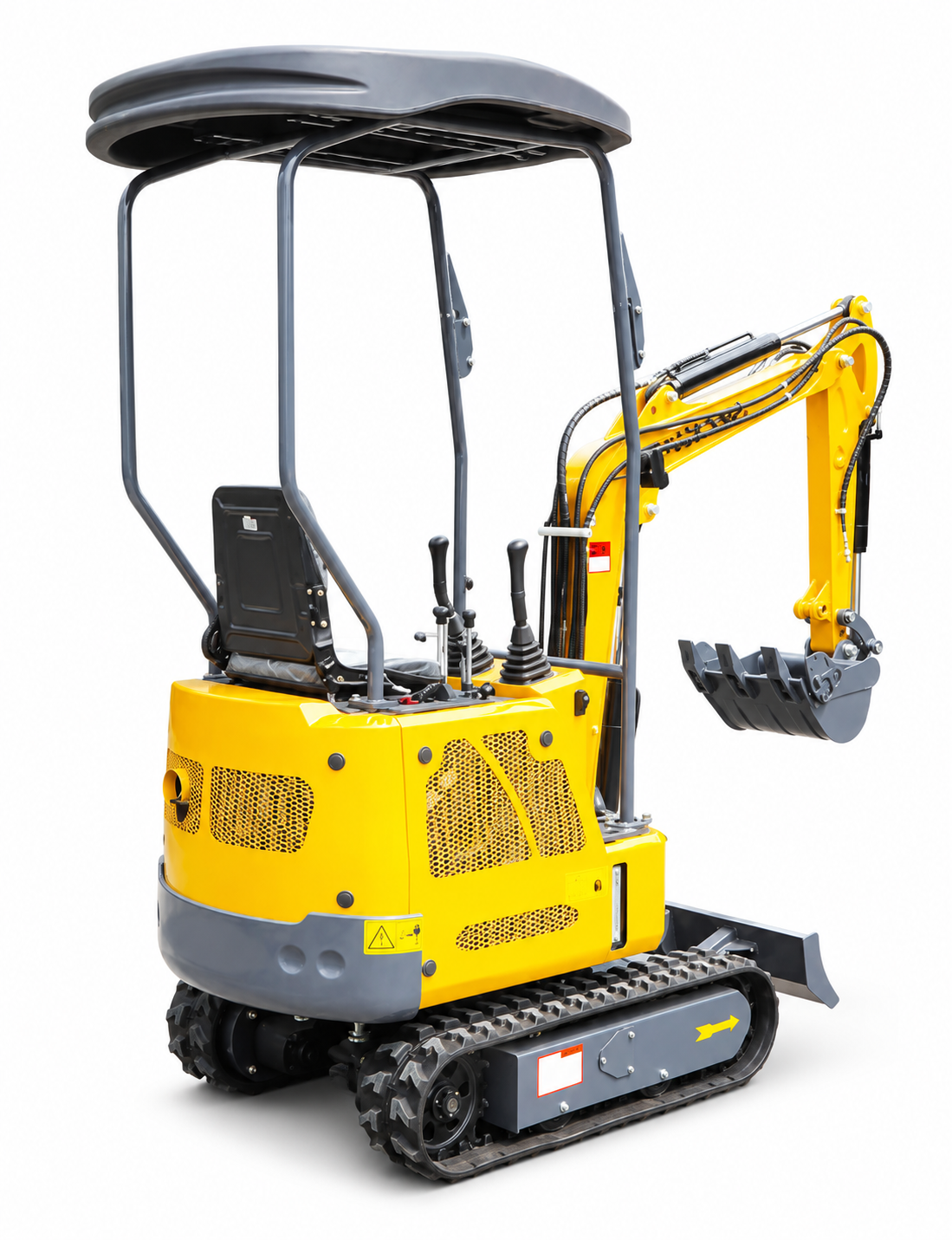

HW-12 Mini Excavator
The HW-12 Mini Excavator is a compact, practical, and efficient machine designed for excavation, loading, grading, and material-handling tasks in confined spaces. Its compact size allows it to operate easily in areas where larger equipment cannot work comfortably.
This model offers an excellent balance of power, maneuverability, and performance, making it ideal for construction, maintenance, landscaping, agriculture, civil works, utility installations, trenching, land clearing, and general tasks requiring precision and ease of operation.
With an operating weight of 980 kg, a 0.025 m³ bucket capacity, and 8.2 kW of rated power, it is a practical solution for light- and medium-duty applications. Its tracked undercarriage provides stability during operation, while its compact design allows easy access to yards, lots, wide passageways, and hard-to-reach areas.
It also features a front dozer blade for grading and moving material, increasing its versatility across a wide range of applications.
Main Features
Specification | Details |
|---|---|
Product | Mini Excavator |
Model | HW-12 |
Operating Weight | 980 kg |
Rated Power | 8.2 kW |
Bucket Capacity | 0.025 m³ |
Overall Width | 930 mm |
Overall Height / With Canopy | 1,470 / 2,160 mm |
Minimum Ground Clearance | 120 mm |
Platform Height from the Ground | 370 mm |
Track Width | 180 mm |
Track Height | 320 mm |
Maximum Dozer Blade Lifting Height | 140 mm |
Maximum Digging Radius | 2,960 mm |
Maximum Digging Height | 2,620 mm |
Maximum Unloading Height | 1,900 mm |
Maximum Digging Depth | 1,675 mm |
Travel Speed | 2.0 km/h |
Ideal For
Construction, civil works, landscaping, agriculture, maintenance, trenching, grading, land clearing, earthmoving, and projects in confined or hard-to-access spaces.
A compact, versatile, and efficient mini excavator designed to deliver powerful performance in a practical and easy-to-maneuver format.
