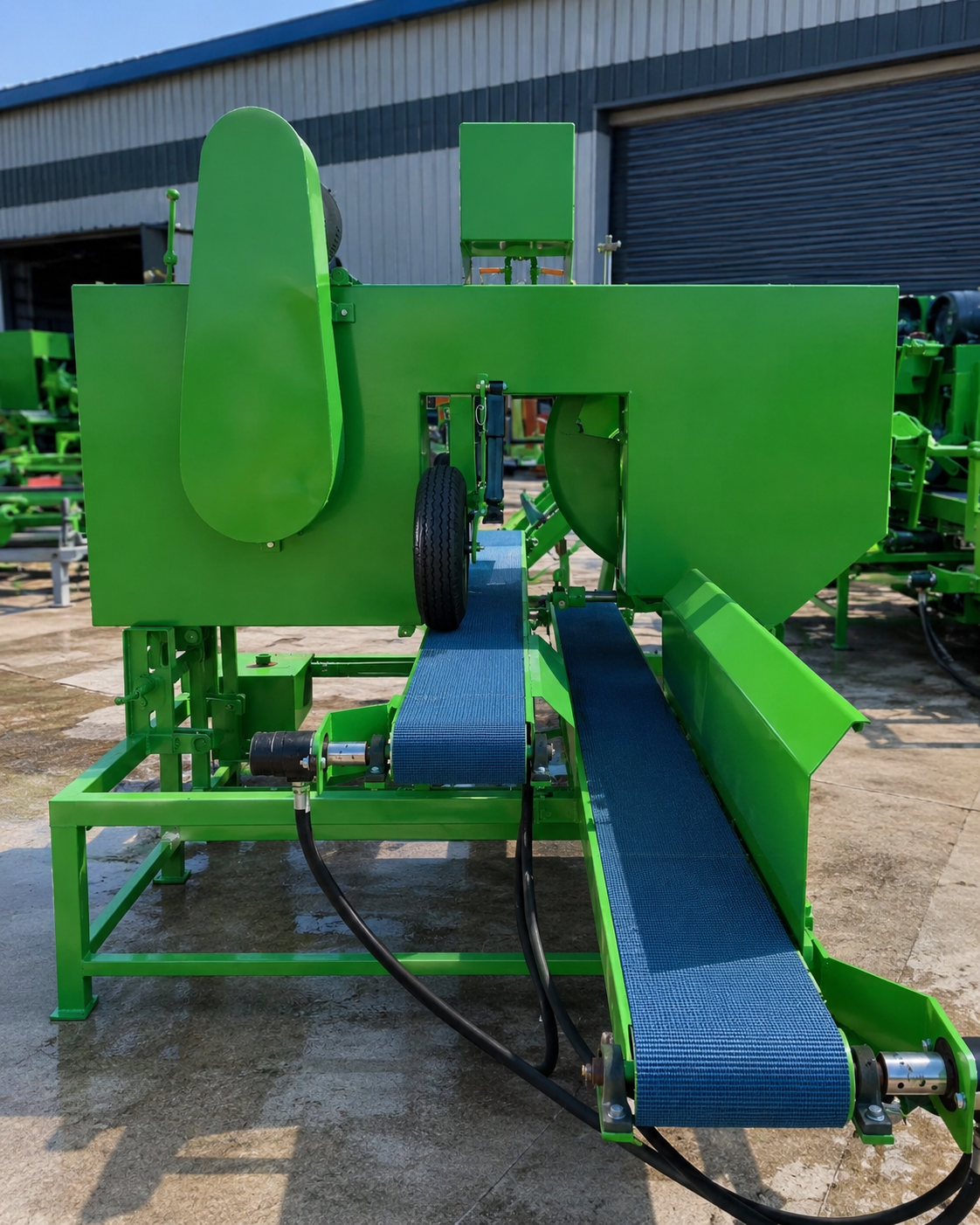

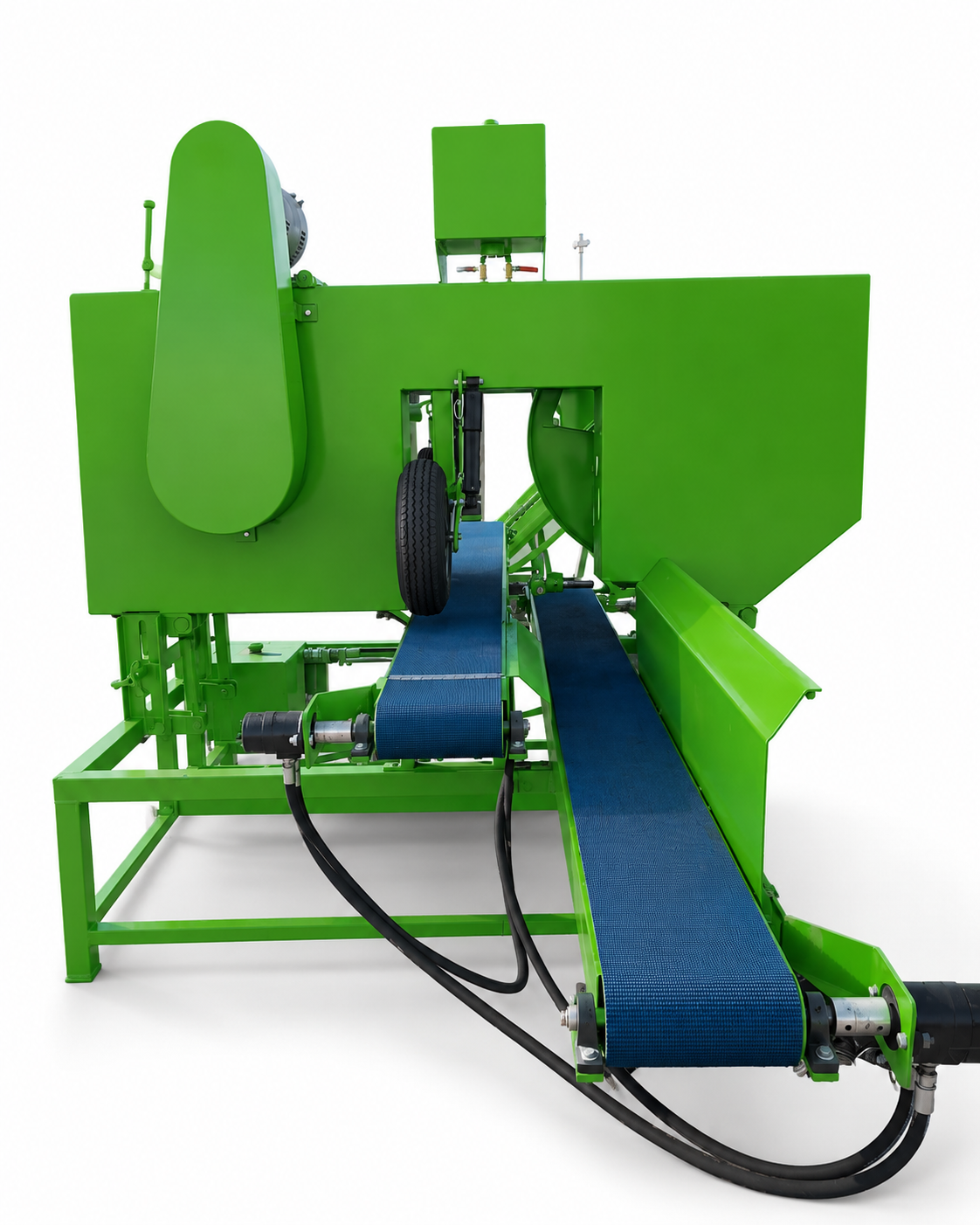

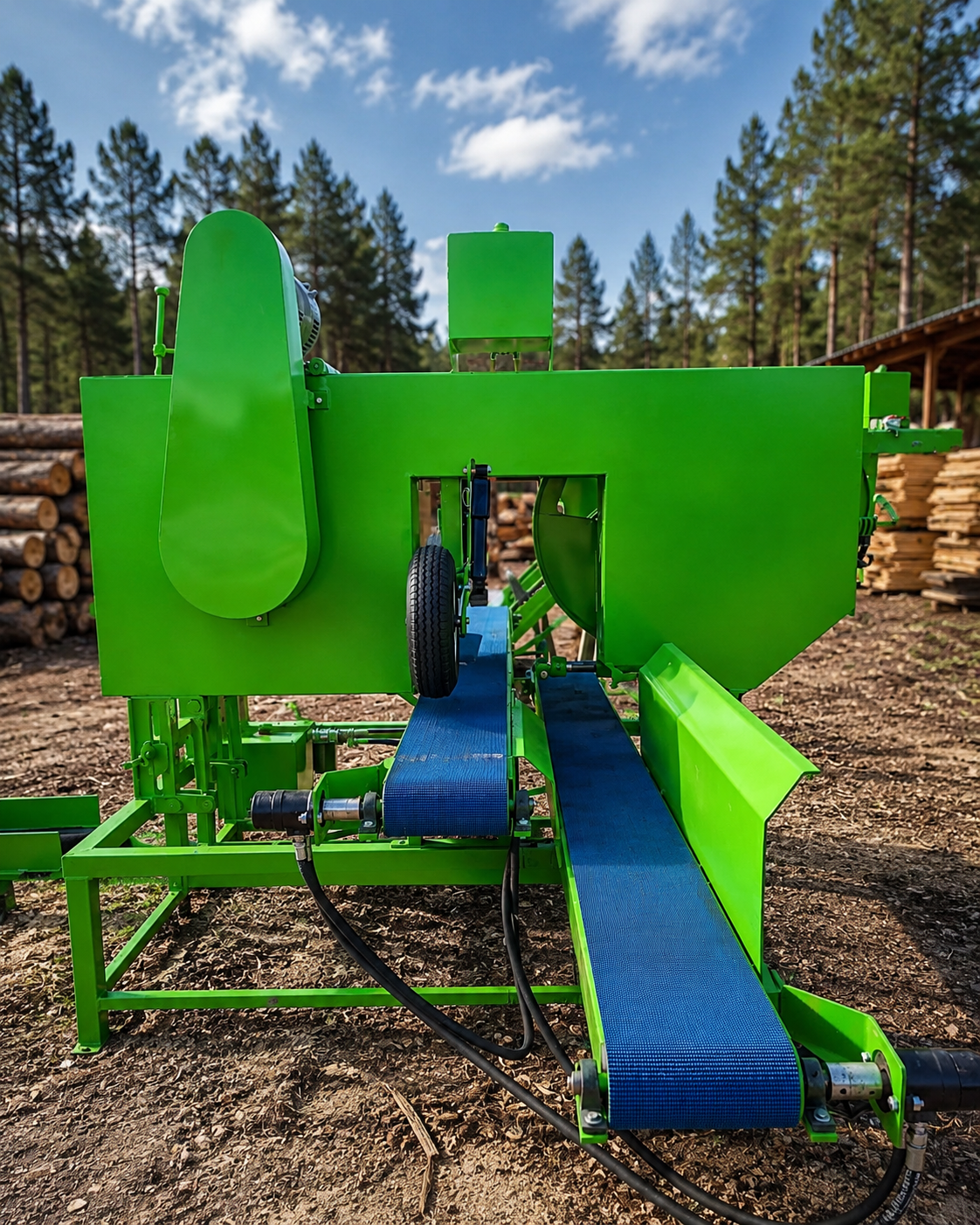

AB MAGNA Single-Head Resaw
The AB MAGNA Single-Head Resaw is designed for the efficient cutting and resawing of lumber. It is ideal for sawmills, forestry workshops, and industrial operations seeking to improve material recovery and production efficiency.
It is equipped with a 15 HP cutting-head motor operating at 1,750 RPM, providing the power required for continuous and precise cuts. Its feed system includes a 3 HP infeed conveyor motor and a 3 HP return conveyor motor, allowing a practical and consistent material flow.
The machine includes an electric variable-speed drive, allowing the feed rate to be adjusted according to the wood species and production requirements. Motor starters are also included, simplifying installation and operation.
Its 10.5-inch-wide infeed conveyor provides stability throughout the cutting process, while its 2 1/2-inch band wheels and 2" × 220" bandsaw blade deliver reliable performance for industrial applications.
Main Features
Specification | Details |
|---|---|
Model | AB MAGNA Single-Head Resaw |
Cutting-Head Motor | 15 HP at 1,750 RPM |
Infeed Conveyor Motor | 3 HP |
Return Conveyor Motor | 3 HP |
Variable-Speed Drive | Electric |
Motor Starters | Included |
Infeed Conveyor Width | 10.5" |
Band Wheels | 2 1/2" |
Bandsaw Blade | 2" × 220" |
Production Capacity per Shift | Up to 2,500 Board Feet |
Ideal For
Lumber resawing, board recovery, forestry processing, sawmills, and production lines requiring continuous cutting and improved material yield.
A robust, practical, and efficient machine designed to optimize lumber cutting and material recovery in industrial operations.
