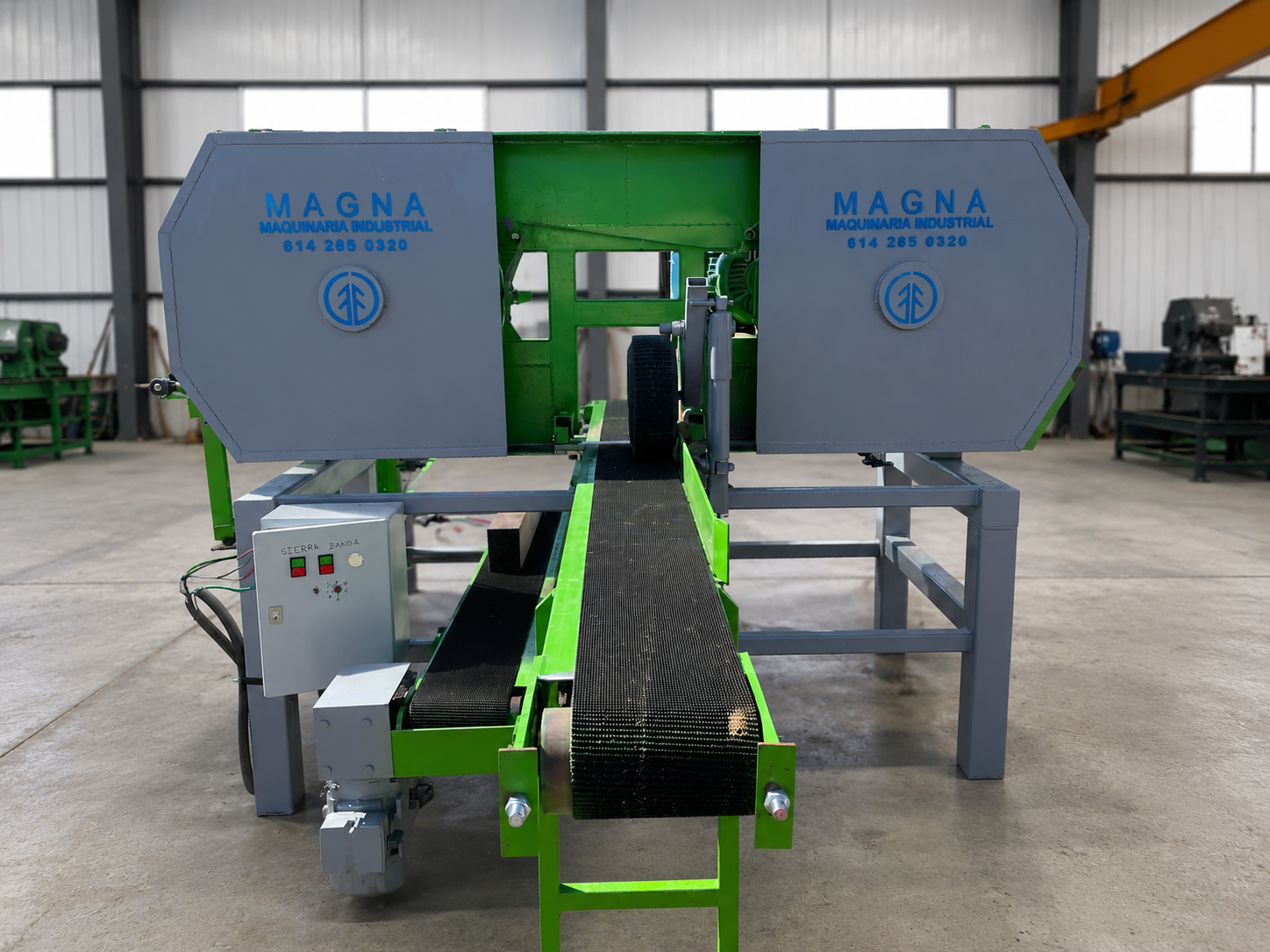

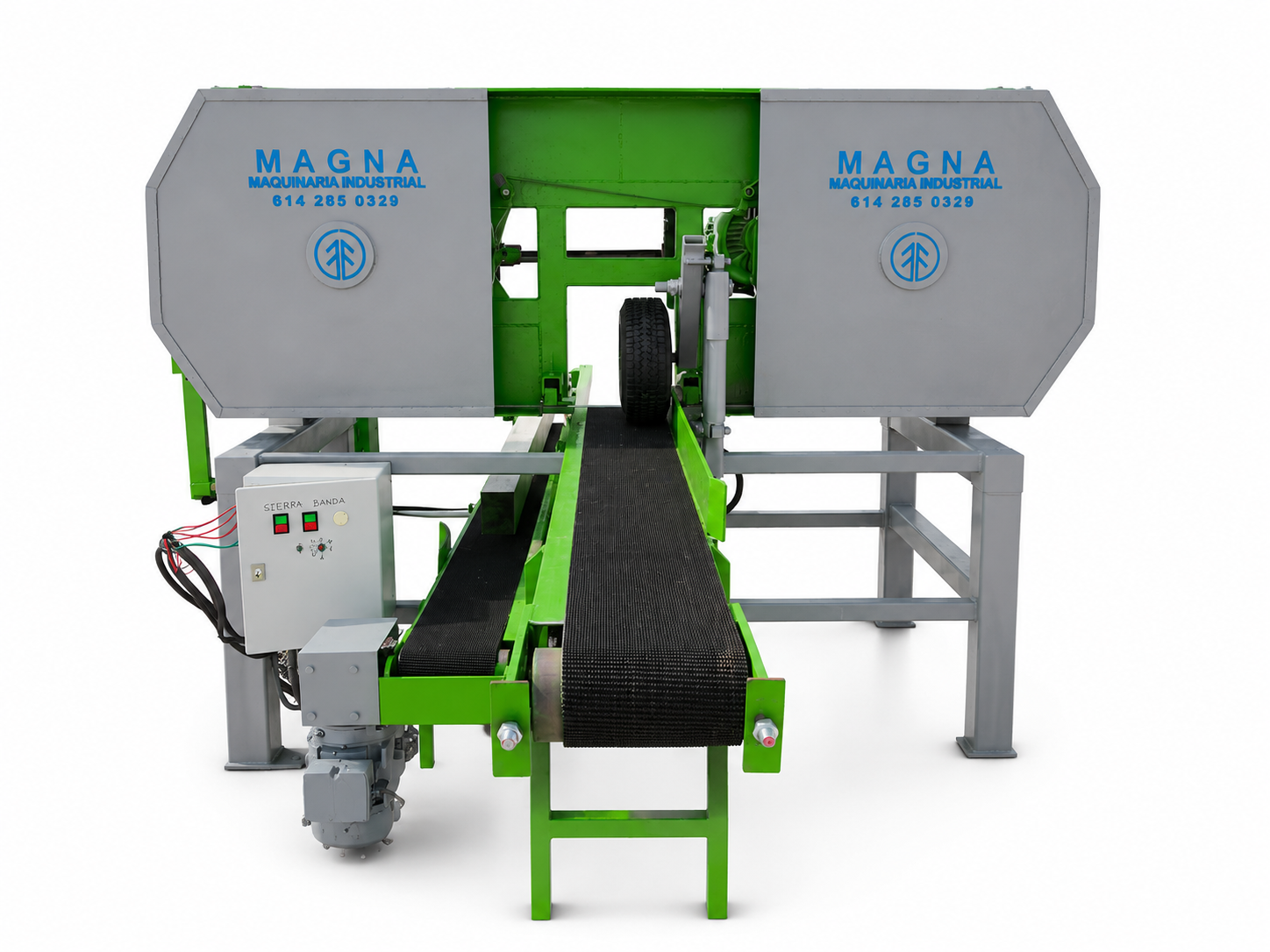

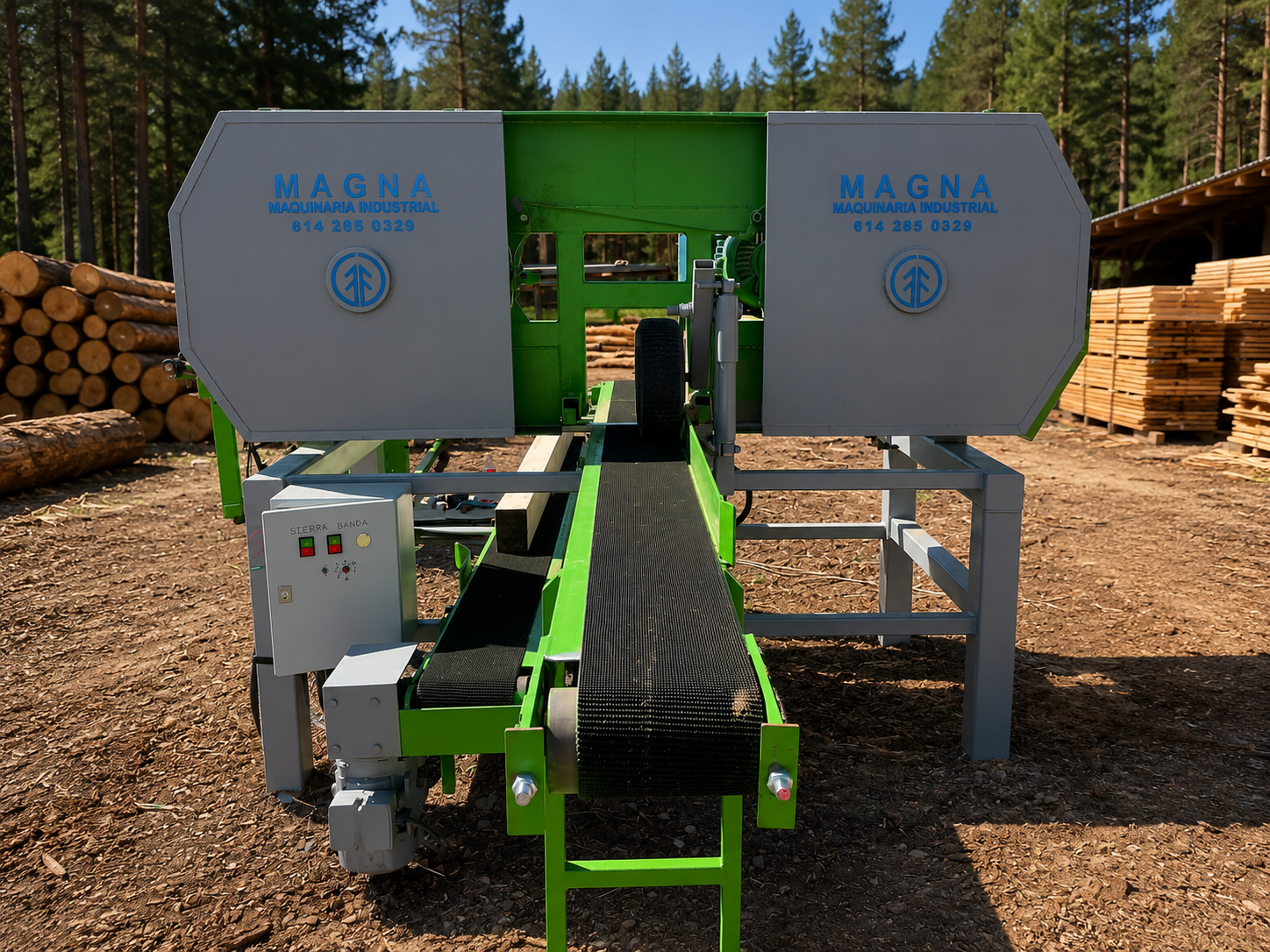

AB MAGNA High-Production Single-Head Resaw
The AB MAGNA High-Production Single-Head Resaw is an industrial machine designed to optimize wood cutting and material recovery during continuous resawing operations. Its robust and functional design provides efficiency, precision, and high performance for sawmills, forestry workshops, and wood-processing industries.
It is equipped with a 15 HP head motor operating at 1,750 RPM, providing the power required for consistent and uniform cuts. It also includes a 3 HP infeed conveyor motor and a 3 HP return conveyor motor, allowing a practical and continuous production flow.
Its electric variable-speed drive allows the feed rate to be adjusted according to the type of wood and production requirements, providing greater control during the cutting process. Motor starters are also included, simplifying operation and installation.
The 10.5-inch-wide infeed conveyor provides stability as the material enters the machine, while its 2 1/2-inch band wheels and 2" × 220" bandsaw blade deliver reliable performance for industrial applications.
With an approximate production capacity of up to 2,500 board feet per shift, this resaw is an excellent choice for businesses seeking to increase production capacity and maximize the yield of every piece of wood.
Main Features
Specification | Details |
|---|---|
Model | AB MAGNA High-Production Single-Head Resaw |
Number of Heads | One Head |
Head Motor | 15 HP at 1,750 RPM |
Infeed Conveyor Motor | 3 HP |
Return Conveyor Motor | 3 HP |
Variable-Speed Drive | Electric |
Motor Starters | Included |
Infeed Conveyor Width | 10.5" |
Band Wheels | 2 1/2" |
Bandsaw Blade | 2" × 220" |
Production Capacity per Shift | Up to 2,500 Board Feet |
Ideal For
Sawmills, wood-production lines, board resawing, lumber recovery, forestry workshops, and companies requiring continuous cutting with reliable performance.
A robust, efficient, and high-production resaw designed to improve lumber recovery and increase productivity in industrial wood-processing operations.
