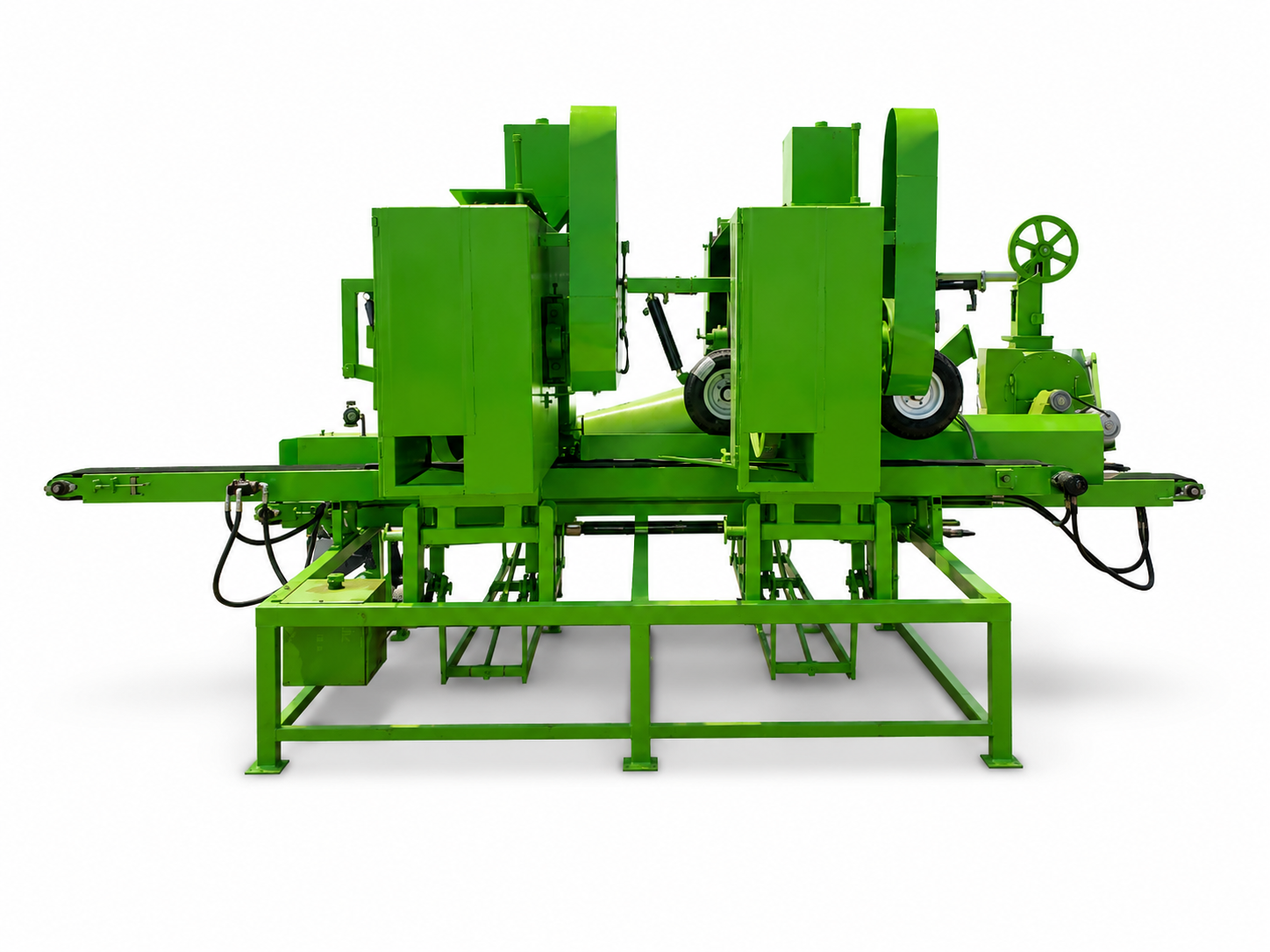

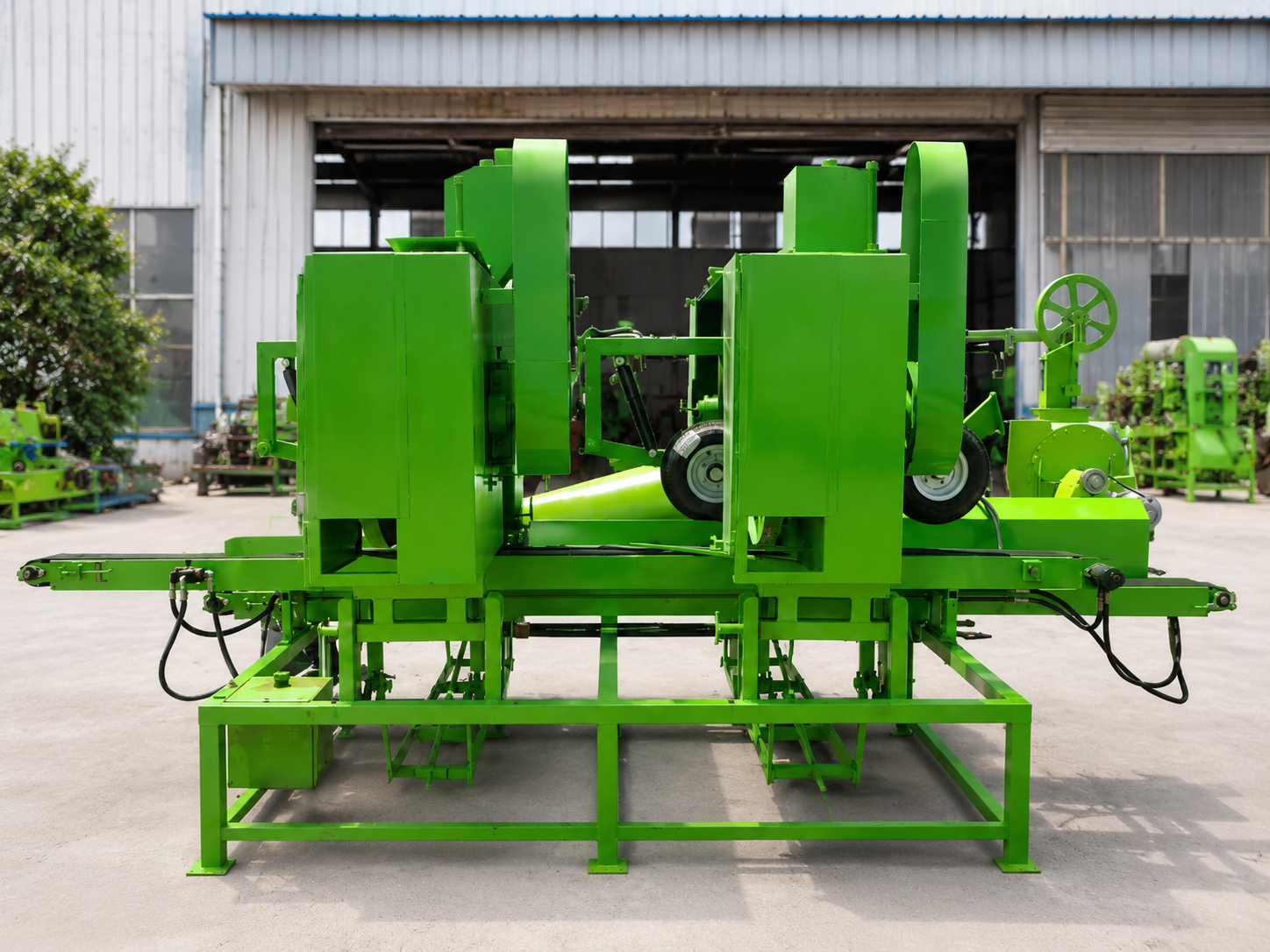

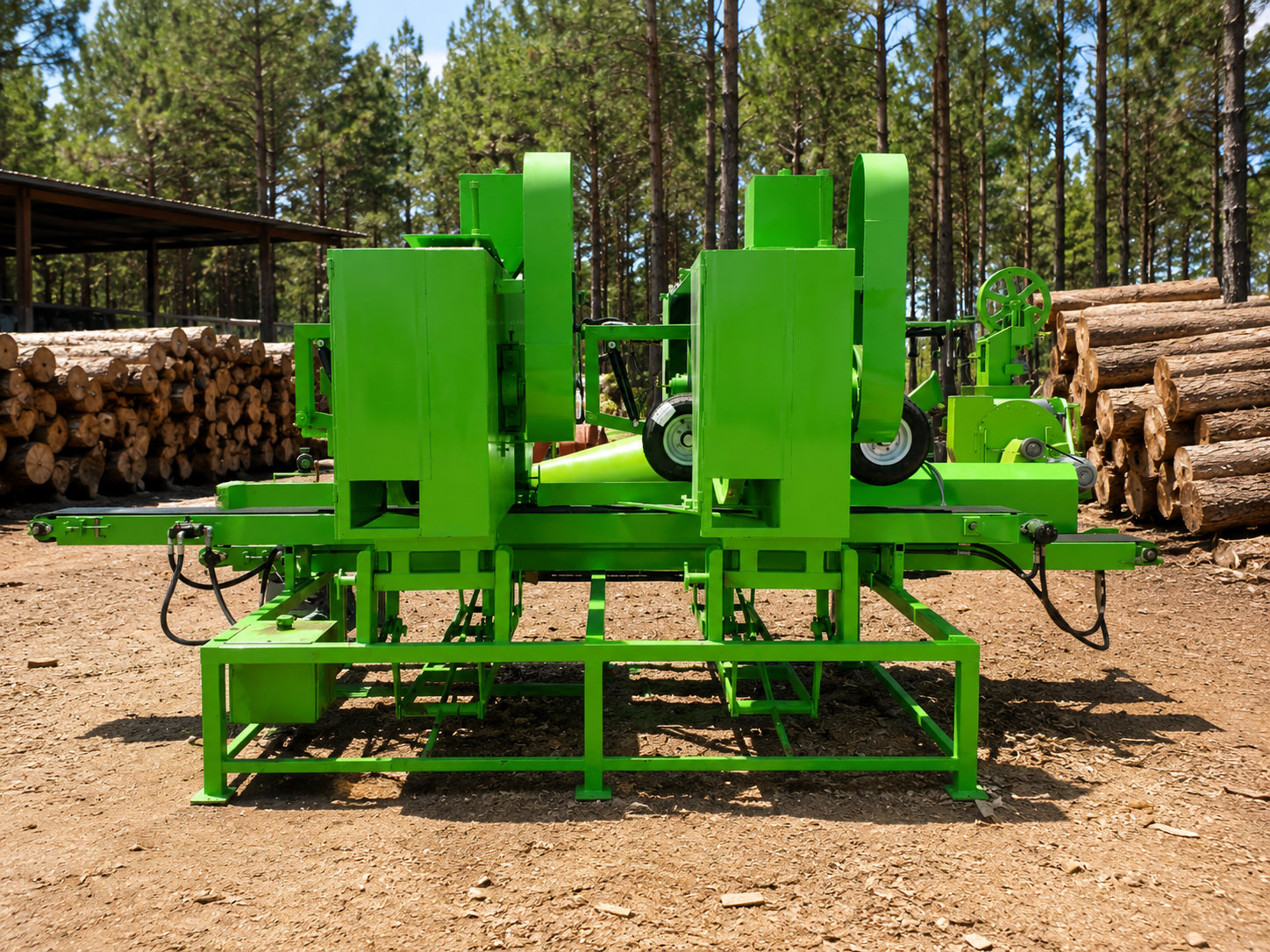

AB MAGNA Double-Head Resaw
The AB MAGNA Double-Head Resaw is an industrial machine designed to increase productivity in lumber resawing operations, providing greater cutting capacity, precision, and efficiency in forestry production lines.
It features two cutting heads, each equipped with a 15 HP electric motor operating at 1,750 RPM, allowing continuous operation with high performance. Its double-head system improves lumber recovery and increases production compared with single-head equipment.
The machine incorporates a hydraulic system with manual controls to regulate conveyor speed. This system uses a 19 gal/min hydraulic pump powered by a 5 HP electric motor operating at 1,750 RPM, allowing the feed rate to be adjusted according to the wood species and production requirements.
Its adjustable cutting heads can be configured to produce the required lumber dimensions, while the infeed and return conveyors maintain a continuous material flow, improving operation and reducing material-handling time.
Manufactured from heavy-duty structural steel, this resaw provides the strength, stability, and durability required for demanding industrial applications.
Main Features
Specification | Details |
|---|---|
Model | AB MAGNA Double-Head Resaw |
Number of Cutting Heads | Two |
Motor per Head | 15 HP at 1,750 RPM |
Feed System | Hydraulic with Manual Controls |
Hydraulic Pump | 19 gal/min |
Hydraulic-System Motor | 5 HP at 1,750 RPM |
Cutting Heads | Adjustable to the Required Cutting Dimension |
Conveyors | Infeed and Return |
Production per Head | 350 Board Feet per Hour |
Estimated Total Production | Up to 700 Board Feet per Hour |
Band Wheels | 2 1/2" × 36" |
Construction | Heavy-Duty Structural Steel |
Ideal For
Sawmills, forestry industries, lumber production lines, board resawing, material recovery, and operations requiring continuous cutting with high production capacity.
A robust, efficient, and high-performance resaw designed to increase productivity and optimize lumber recovery.
