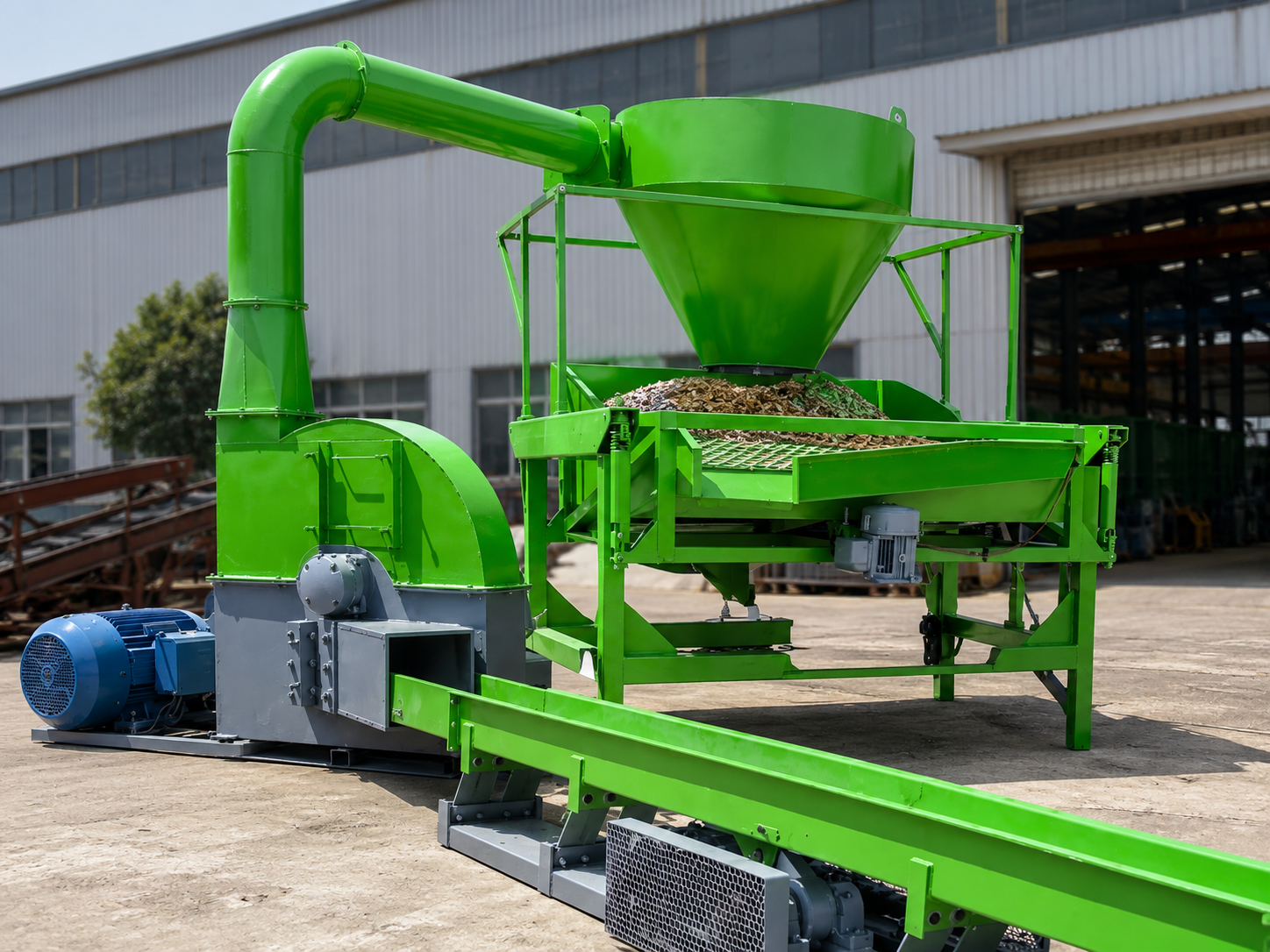

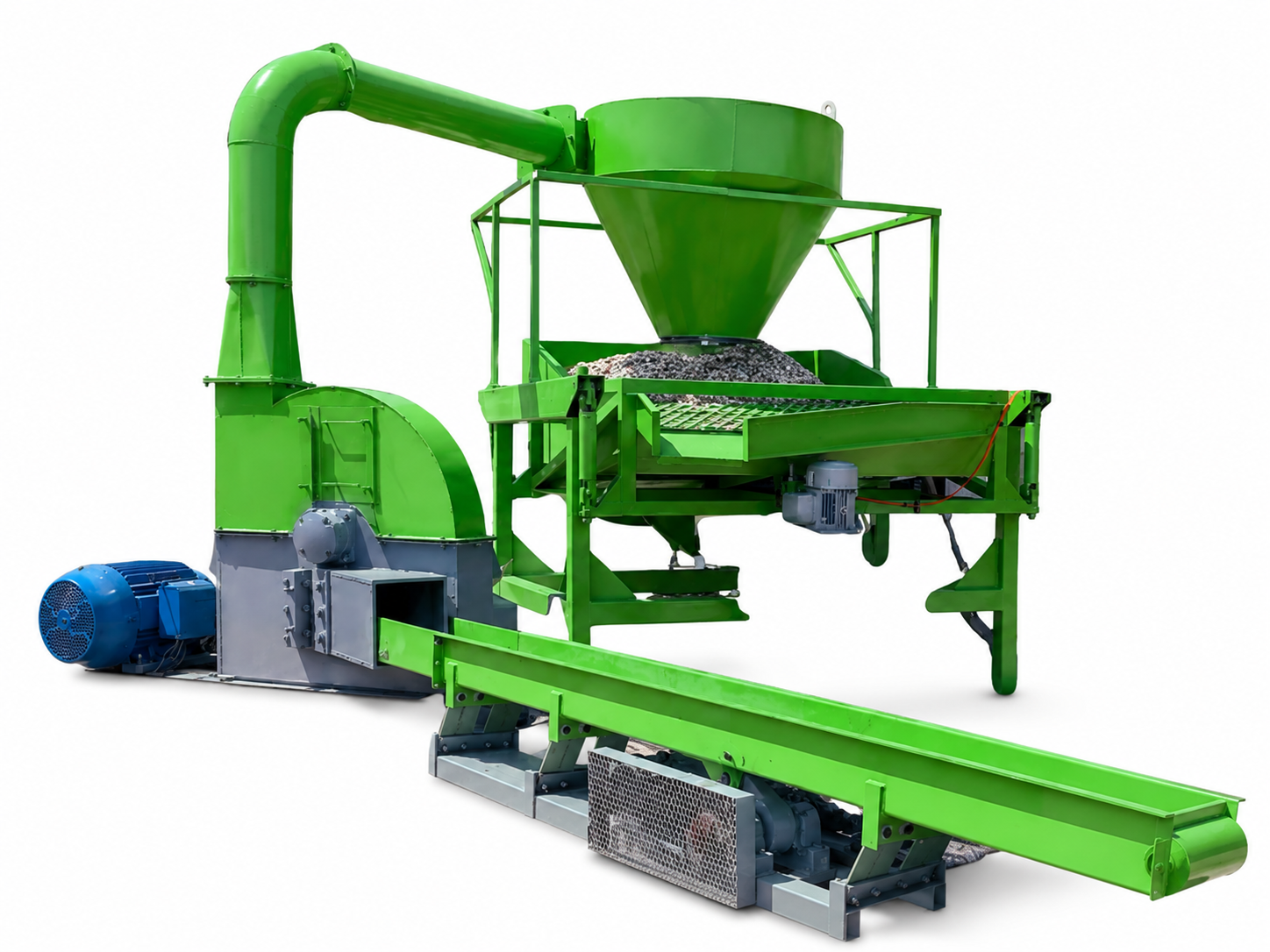

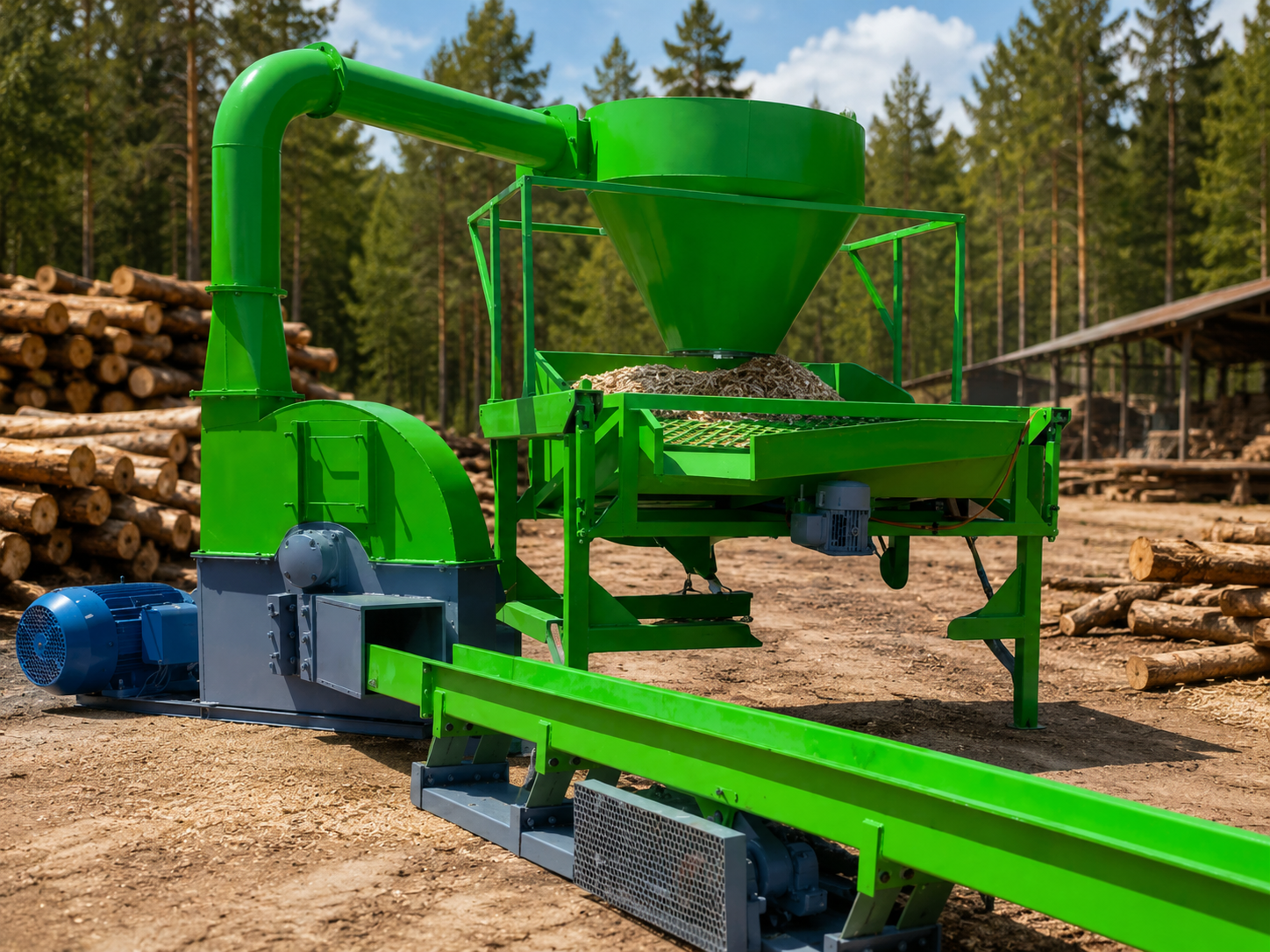

AB MAGNA 38"–48" Wood Chipping System

The AB MAGNA 48" Wood Chipping System is an industrial production line designed for the efficient processing of wood and production of wood chips. It is ideal for forestry companies, sawmills, wood-recovery facilities, and operations requiring high performance, durability, and continuous production.

This system includes an AB MAGNA 48" Wood Chipper equipped with four cutting knives, designed to produce efficient and uniform cuts. Its 100 HP main motor, combined with a reduced-voltage starter, provides the power required for heavy-duty operation while reducing electrical impact during startup.

It includes a 12" discharge pipe and cyclone, allowing the processed material to be discharged efficiently. The system also features an AB MAGNA 4 × 8 ft Vibratory Screen powered by a 3 HP motor, designed to classify the wood chips and separate fines according to production requirements.

To maintain a continuous material flow, the system incorporates a 12 × 10 ft Vibratory Infeed Conveyor with a 3 HP motor, a 14" × 35 ft Wood Chip Discharge Conveyor with a 3 HP gearmotor, and a 10" × 20 ft Fines Discharge Conveyor with a 3 HP gearmotor.

Designed for industrial applications, the AB MAGNA Wood Chipping System provides a robust, efficient, and reliable solution for optimizing wood recovery and improving productivity throughout the chipping process.

Main Features

Ideal For

Wood chip production, wood-waste recovery, forestry processing, sawmills, wood chipping facilities, and industrial production lines requiring the separation of wood chips and fines.

A complete, robust, and efficient system designed to convert wood into usable chips through a continuous, organized, and productive process.
